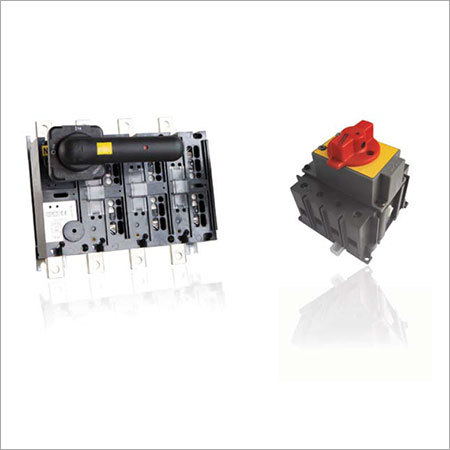

Solar DC Disconnect Switch

Solar DC Disconnect Switch
Solar DC Disconnect Switch
Send Inquiry
Product Code : 01
Product Description

Solar DC Disconnect Switch

As of today, solar photovoltaic generates electricity in more than 100 countries and yet, despite constituting a tiny fraction of the 4800 GW total power-generating capacity from all sources, it is the fastest growing power- generation technology in the world.
Between 2004 and 2009, grid-connected photovoltaic capacity increased at an annual rate of 60%.

COET DC switch disconnectors for Photovoltaic applications are typically used in:

  • String boxes (1° level), for strings paralleling
  • Junction boxes, for string boxes paralleling
  • Inverter cubicles, for sectionalising

The line includes a range of compact size switch-disconnectors with very high DC performance: up to 1000Vdc from 20A to 800A.
Each model of the range has been fully type-tested at CESI laboratory according to EN60947-3 standards for categories DC21 and DC22.
Besides the line of switches for dc photovoltaic applications, COET is leader in Italy in manufacturing switches for ac voltage applications, in various switching categories.

Resin moulded case body with high mechanical and thermal strength, with auto-extinguish properties and low smoke emission rate

  • Modular line with 2-3-4 poles versions
  • Main contacts visibility
  • Main contacts with double (BTD type) and quadruple (BTC type) interruption on each pole with breaking capacity in cat. DC22 up to 1000Vdc (EN60947-3)
  • Operation handle directly at device’s front or on panel door with door interlock
  • Manual operation with fast break system
  • Optional shunt trip (-B) and undervoltage (-U) release coil
  • Auxiliary contacts for signalisation
  • IP degree by means of optional screens
  • Wide range of accessories and configurations (horizontal or vertical change-over etc.)
